The JNX120XÂ is our smallest Jetson carrier board with an integrated PAB (Pixhawk Auto Pilot Bus) slot. With only 121mm x 50mm.
The JNX120X is a modern drone carrier board which is CAN centric and targeted for small to large drones.
- super mode support for Orin Nano and NX
- M.2 key M 2230 NVME SSD
- M.2 key E 2230 wifi (USB 2.0 and PCIe x1)
- M.2 key B (LTE and 5G)
- I2C
- CAN (optional internal termination)
- MCU (optional watchdog)
- USB 2.0 Hub
- 2x USB 2.0 (micro coax for thermal camera)
- 2x CSI-2 (4 lanes) (micro coax for optical camera)
- 3x UARTs (2x user and debug)
- crypto chip (ATSHA204A)
- TPM chip (SLB9670VQ20FW785XTMA1)
- RTC battery externally via 2 pin connector (RPI Pi 5 type)
- FAN connector (4 pin PicoBlade with PWM and tacho)
- PAB (Pixhawk Auto Pilot Bus) slot

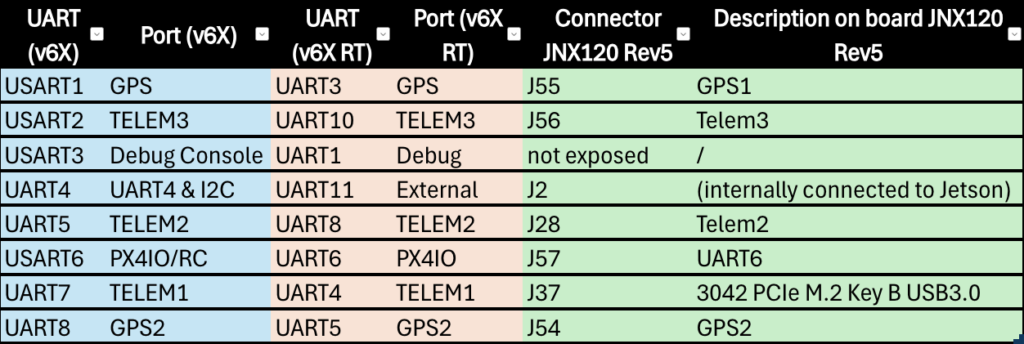

- Internal UART connection (FC to Jetson)
- 5 port GbE switch
- low profile height (incl. heat spreader): 20mm
- power in:Â 12V to 24V (reverse voltage protection, inrush current limitation)
For a more detailed comparison of the JNX110 and JNX120 series, please have a look at the comparison table below.
This product is currently in design, we expect first prototype quantities by January 2026, for more information please contact our sales team.
