Description

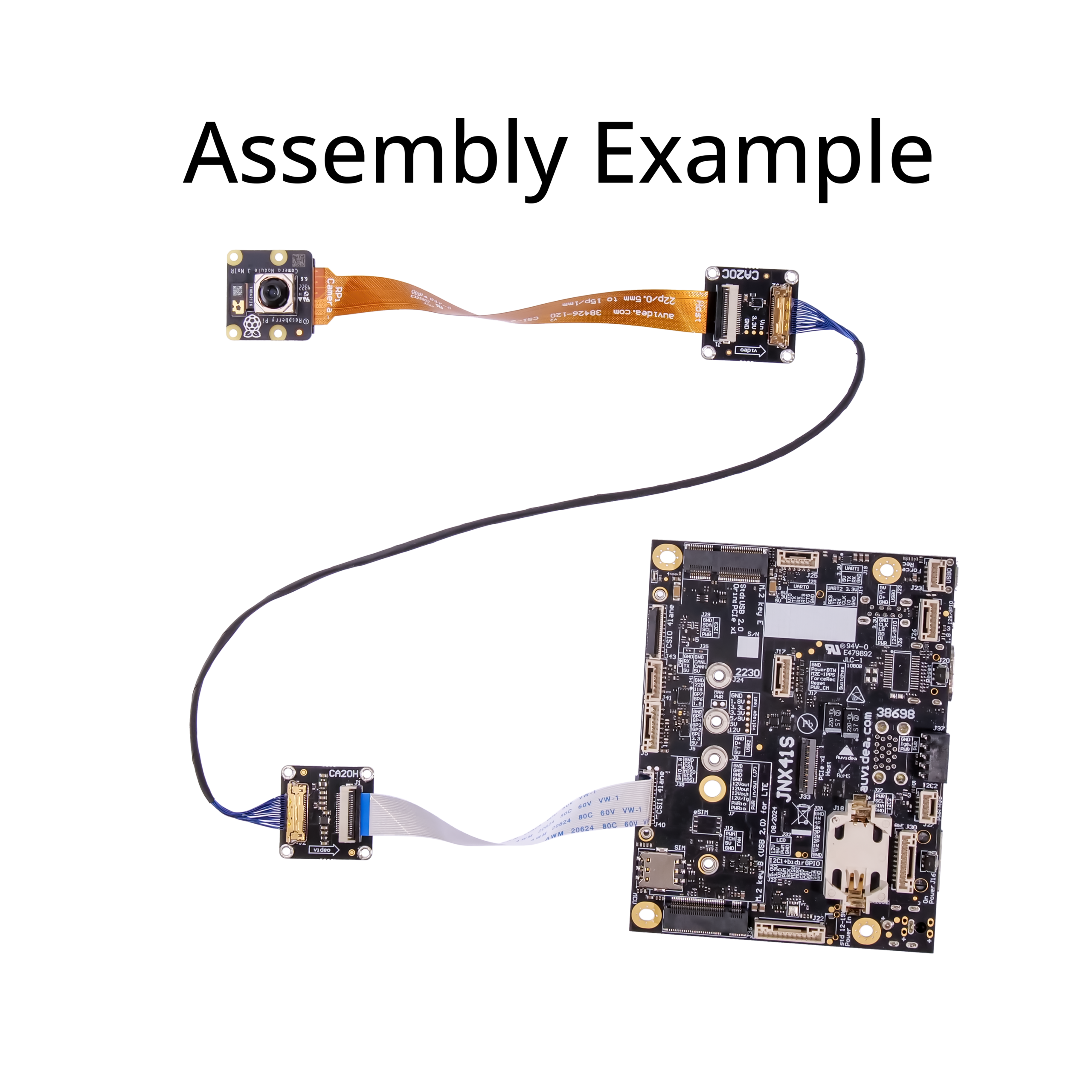

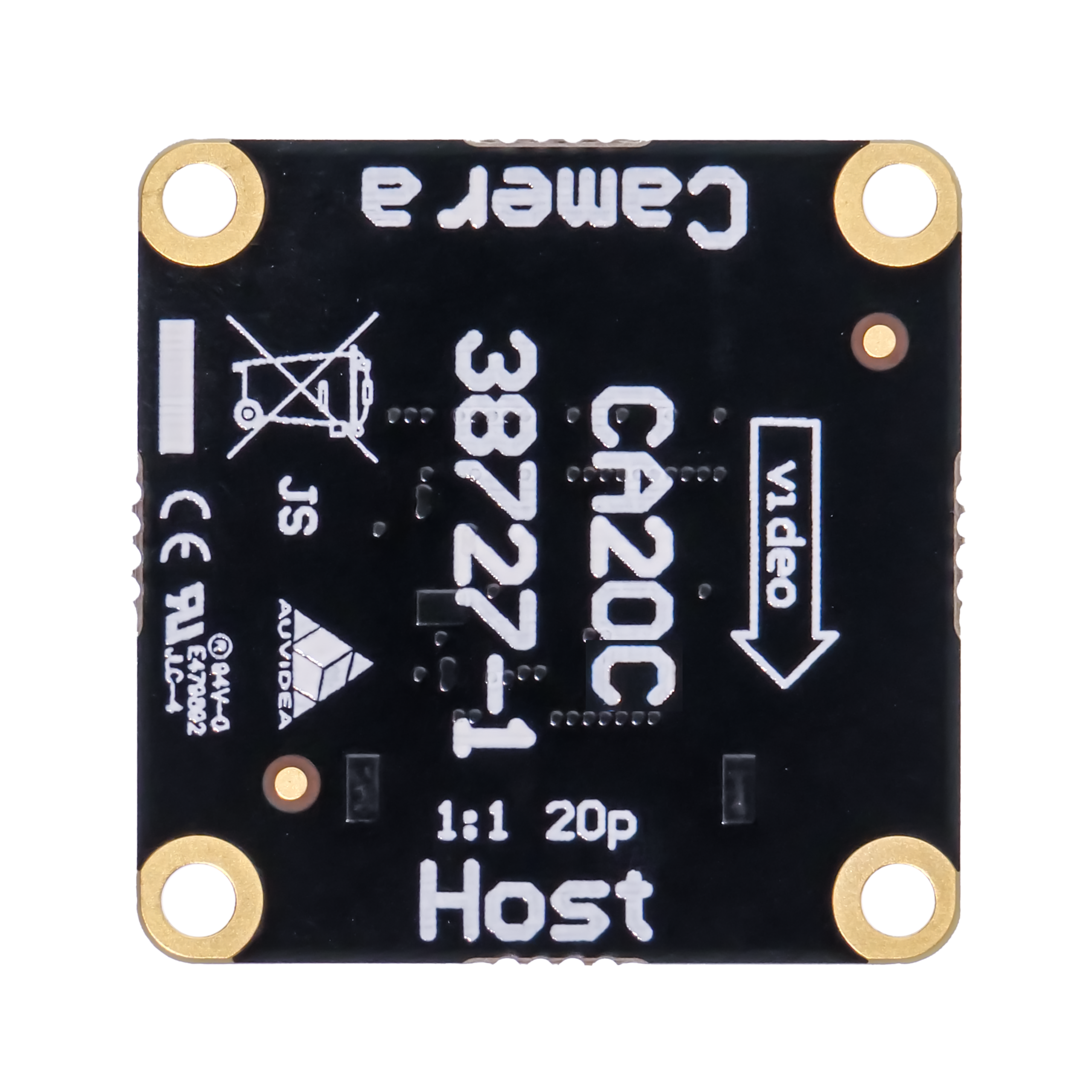

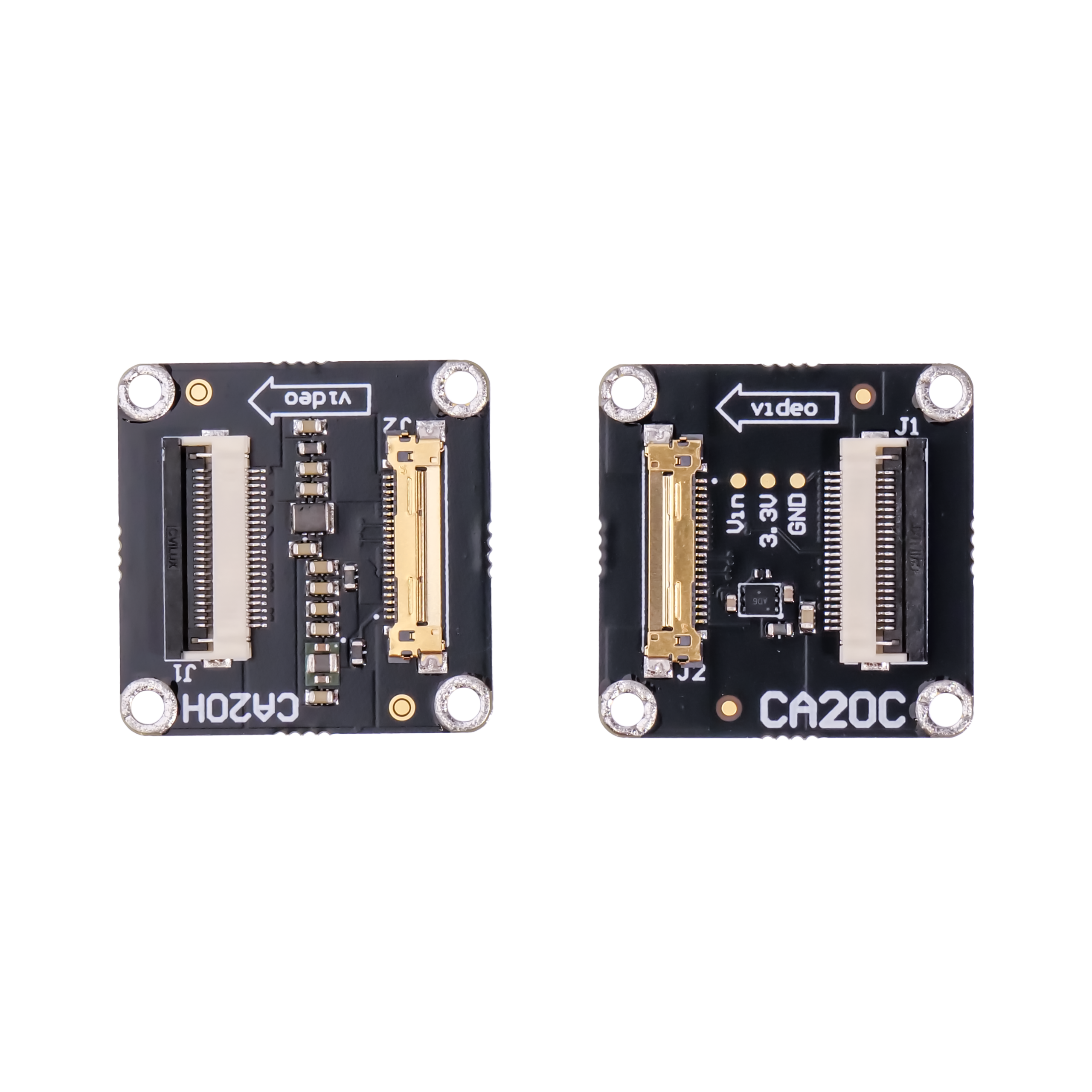

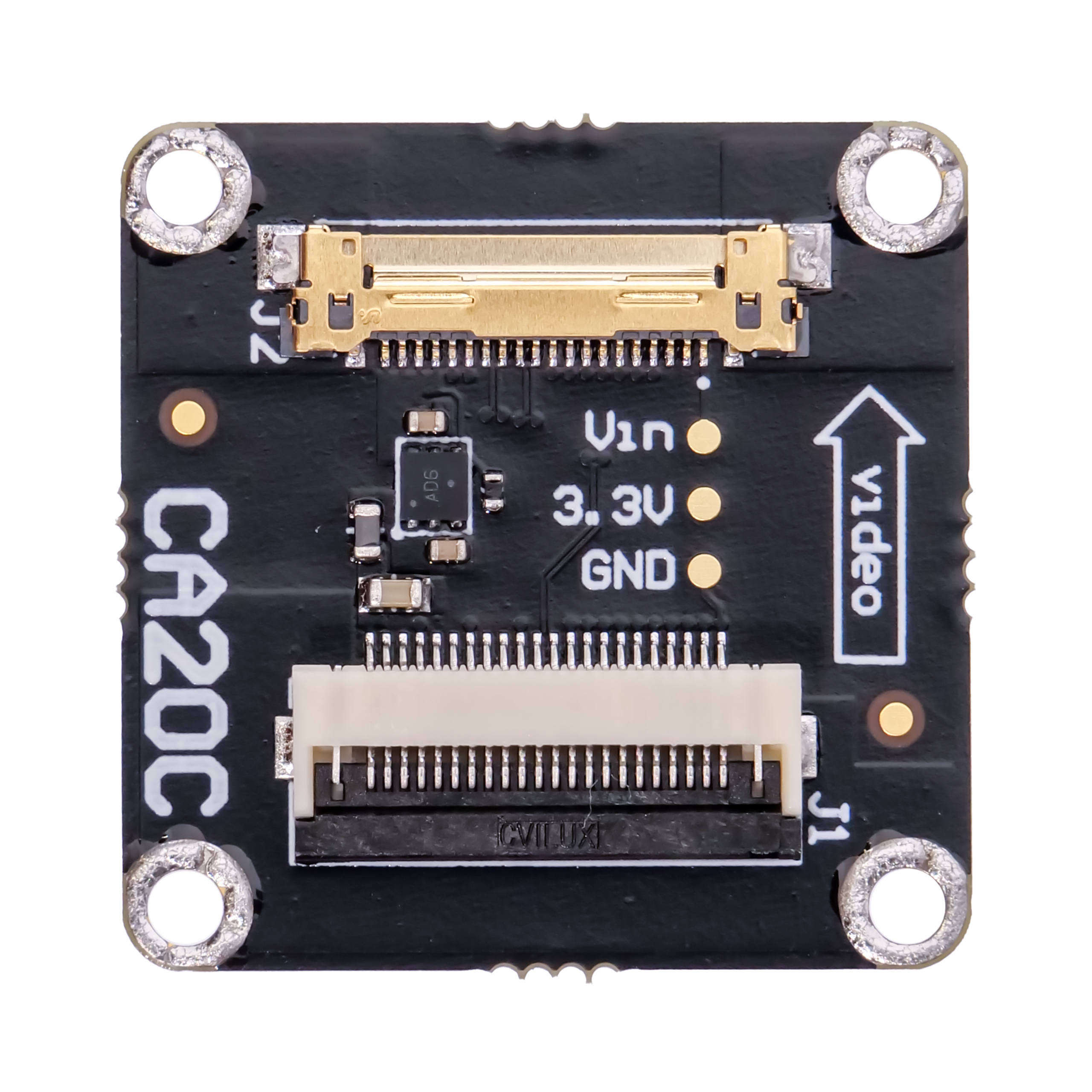

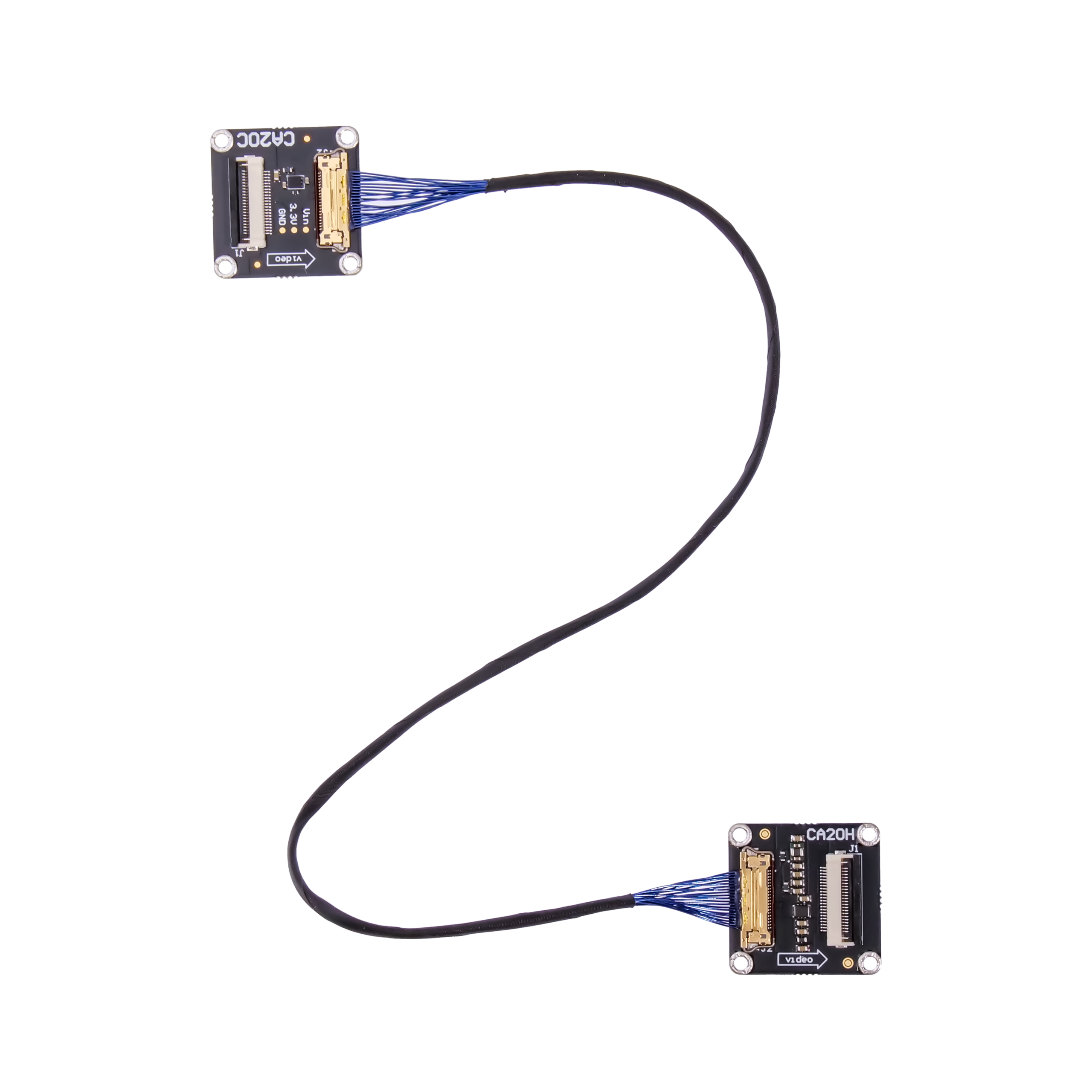

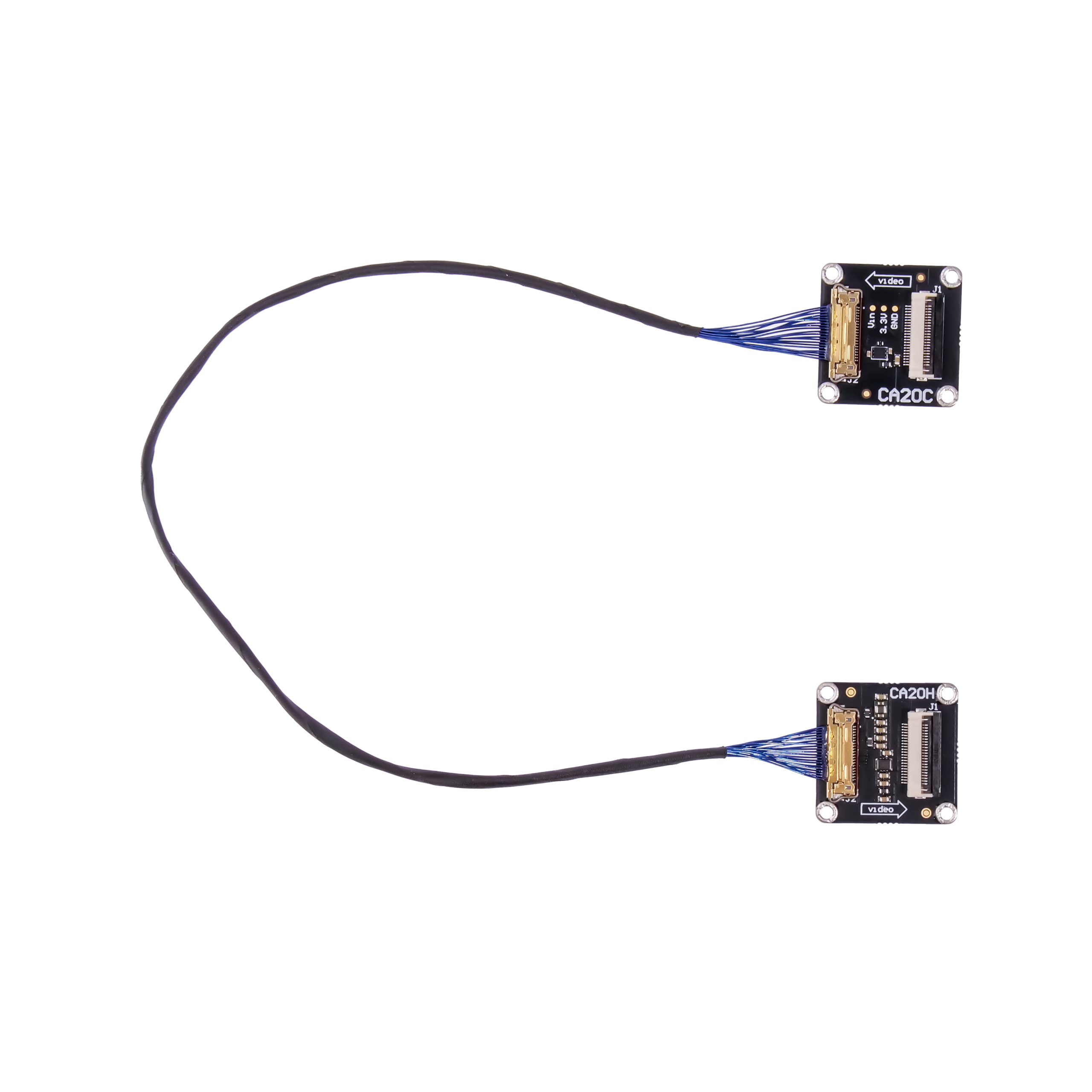

CA20C 22pin FPC to MicroCoax
| Pin | CSI-2 FPC input (camera) | CSI-2 MicroCoax output (host system) |
|---|---|---|
| 1 | V3.3 | VCC_3P3 |
| 2 | I2C_SDA | VCC_3P3 |
| 3 | I2C_SCL | VCC_IP8 |
| 4 | GND | PWDN |
| 5 | MCLK | I2C_SCL |
| 6 | PWDN | I2C_SDA |
| 7 | GND | MIPI_D2_N |
| 8 | RX0_3_P | MIPI_D2_P |
| 9 | RX0_3_N | MIPI_D1_N |
| 10 | GND | MIPI_D1_P |
| 11 | RX0_2_P | MIPI_D0_N |
| 12 | RX0_2_N | MIPI_D0_P |
| 13 | GND | MIPI_CLK_N |
| 14 | RX0_CLK_P | MIPI_CLK_P |
| 15 | RX0_CLK_N | MIPI_D3_N |
| 16 | GND | MIPI_D3_P |
| 17 | RX0_1_P | Flash |
| 18 | RX0_1_N | RSVD |
| 19 | GND | RSVD |
| 20 | RX0_0_P | RSVD |
| 21 | RX0_0_N | -/- |
| 22 | GND | -/- |

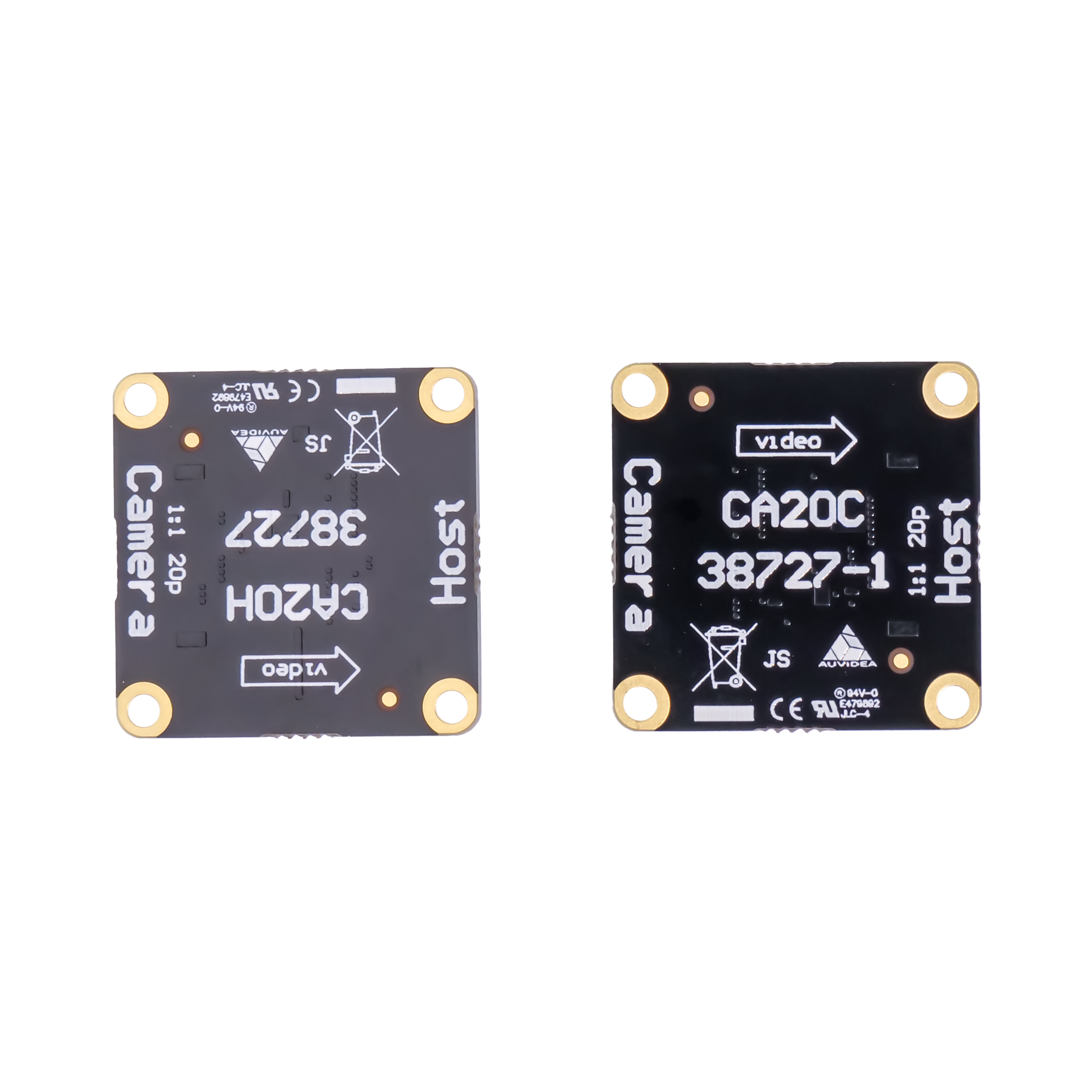

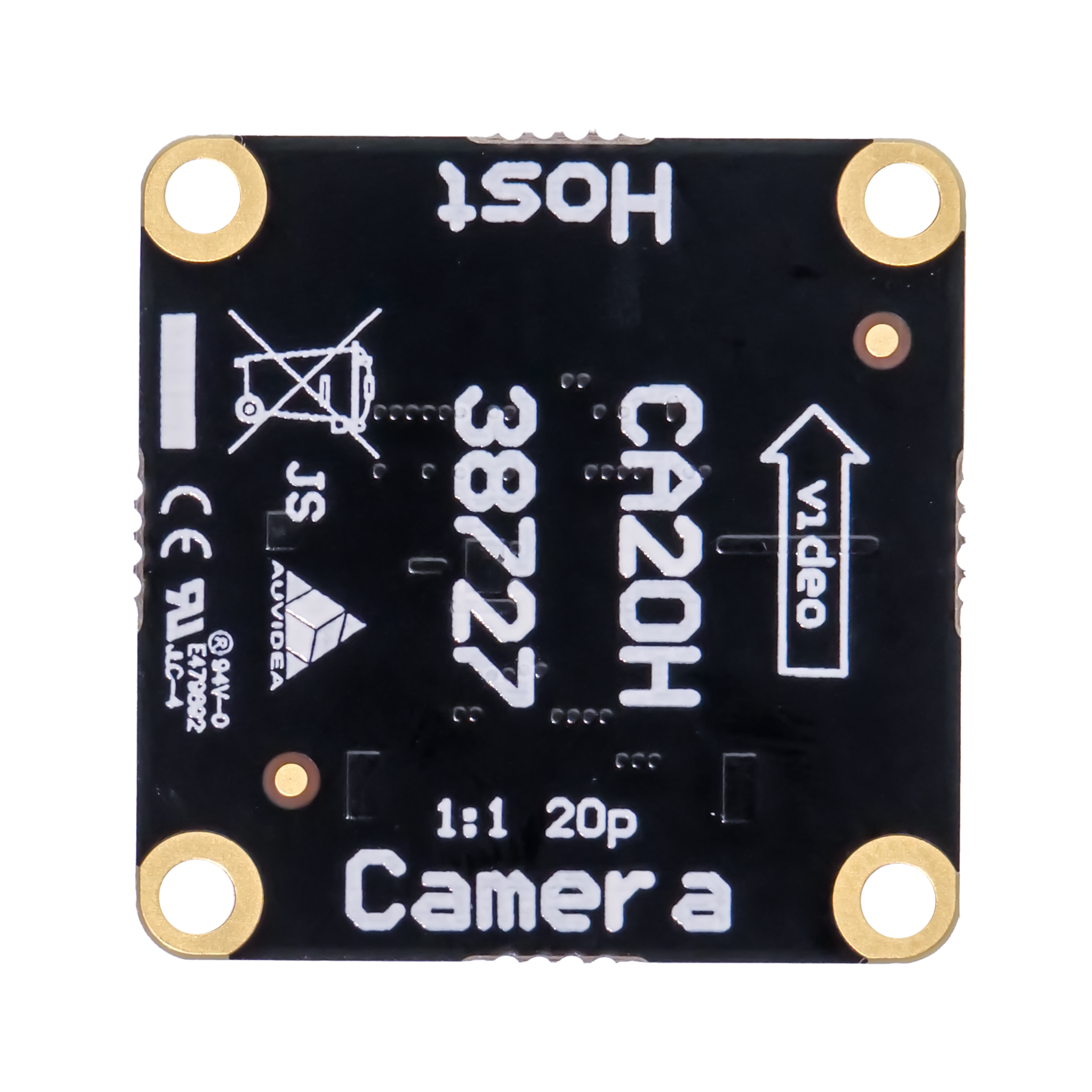

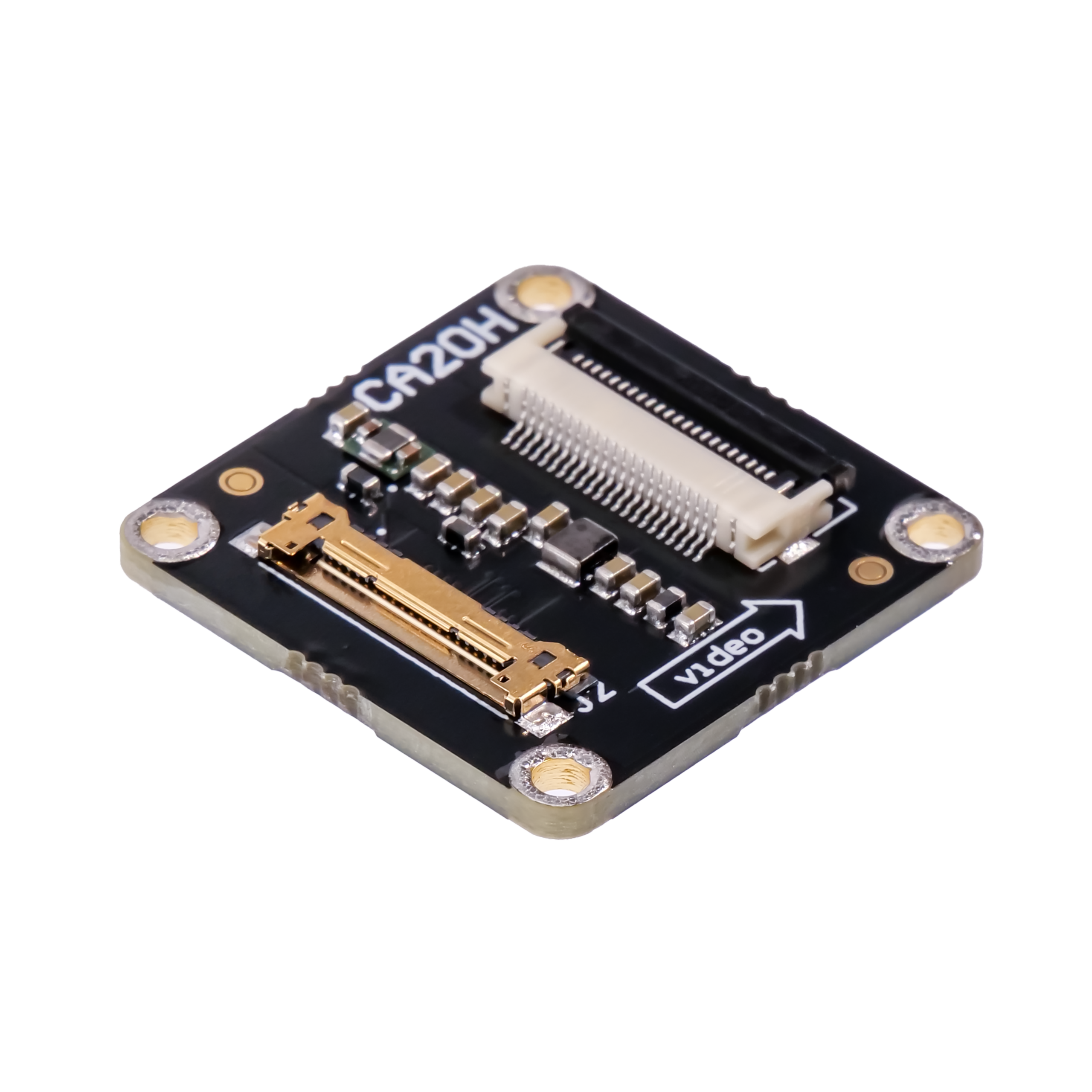

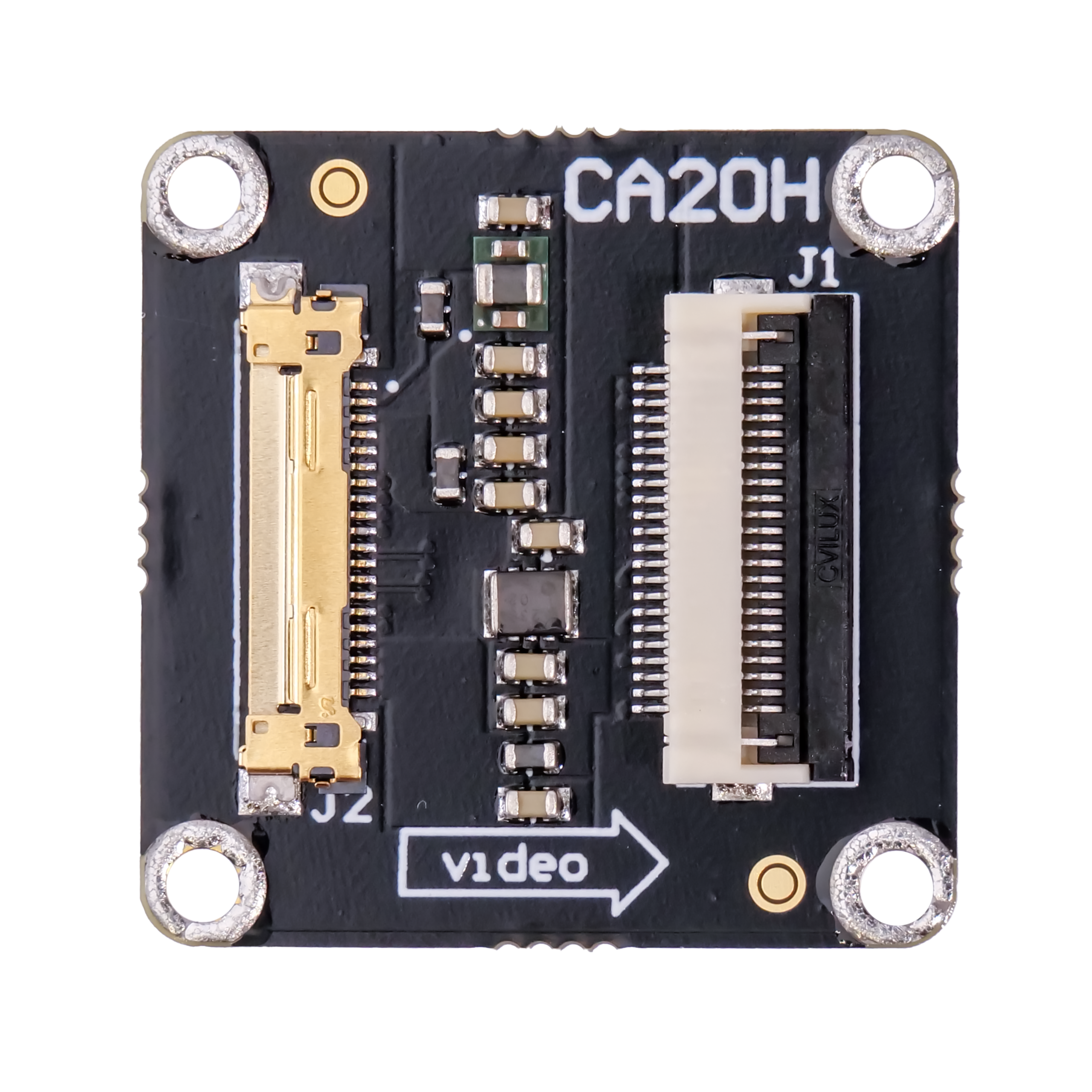

CA20H MicroCoax to 22pin FPC
| Pin | CSI-2 MicroCoax input (camera) | CSI-2 FPC output (host system) |
|---|---|---|
| 1 | VCC_3P3 | GND |
| 2 | VCC_3P3 | RX0_0_N |
| 3 | VCC_IP8 | RX0_0_P |
| 4 | PWDN | GND |
| 5 | I2C_SCL | RX0_1_N |
| 6 | I2C_SDA | RX0_1_P |
| 7 | MIPI_D2_N | GND |
| 8 | MIPI_D2_P | RX0_CLK_N |
| 9 | MIPI_D1_N | RX0_CLK_P |
| 10 | MIPI_D1_P | GND |
| 11 | MIPI_D0_N | RX0_2_N |
| 12 | MIPI_D0_P | RX0_2_P |
| 13 | MIPI_CLK_N | GND |
| 14 | MIPI_CLK_P | RX0_3_N |
| 15 | MIPI_D3_N | RX0_3_P |
| 16 | MIPI_D3_P | GND |
| 17 | Flash | PWDN |
| 18 | RSVD | MCLK |
| 19 | RSVD | GND |
| 20 | RSVD | I2C_SCL |
| 21 | -/- | I2C_SDA |
| 22 | -/- | V3.3 |
